Imperial Square Bolt Partial Thread Plain Alloy Steel 3/8-16 * 5" Grade 2

Imperial Square Bolt Partial Thread Plain Alloy Steel 3/8-16 * 5" Grade 2

4.67 $ CAD
4.67 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

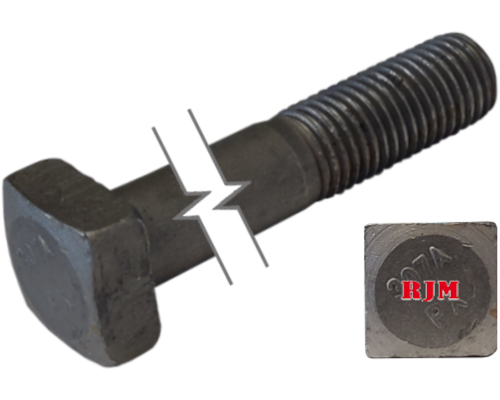

This square bolt has a length of 5" with a threading of 3/8-16 [Partially Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASTM A307 and comply with dimensional standards.

View full details

Specifications
Product Number BCA-03050
Nominal Diameter 3/8-16
Length 5"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Square
Profile Standard
Width 9/16"
Height 1/4"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASTM A307
