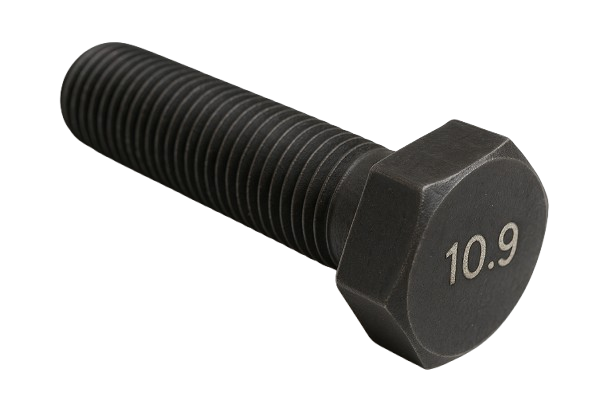

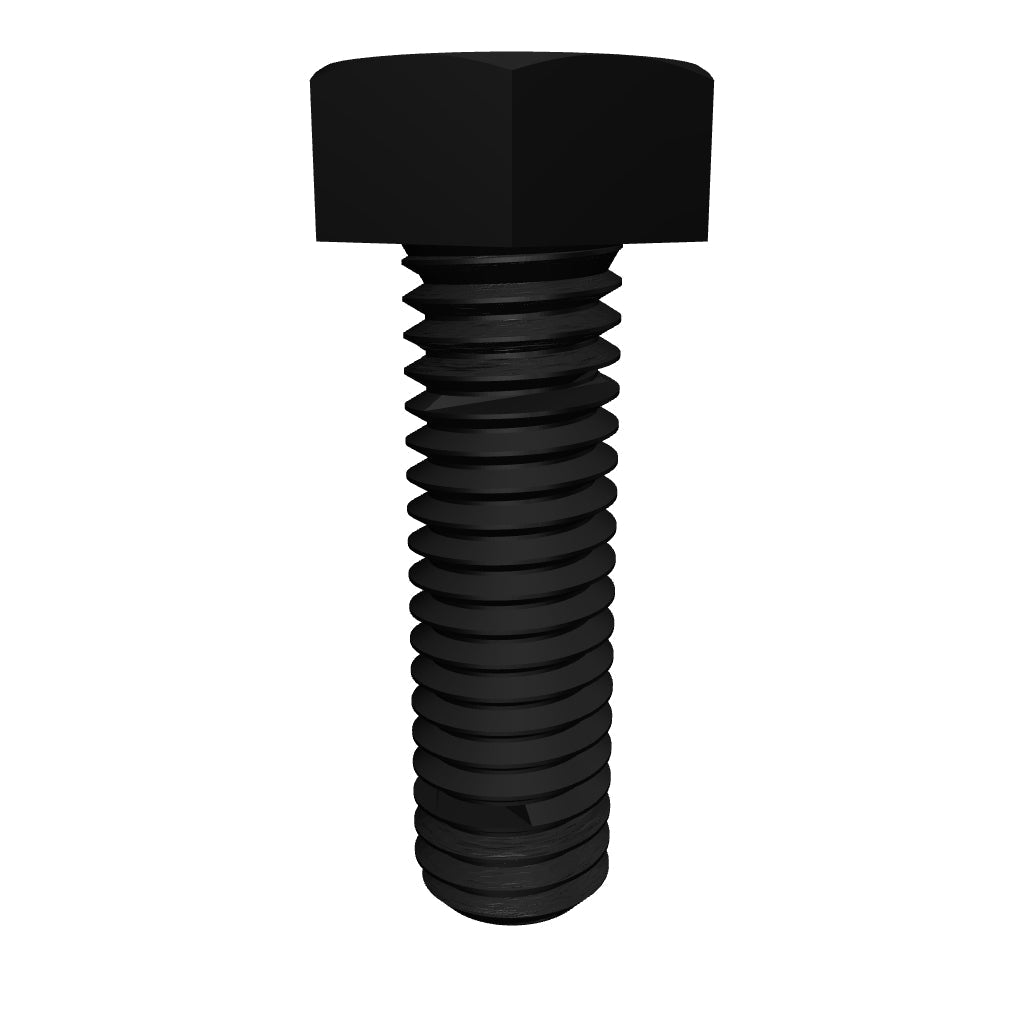

Metric Hexagonal Bolt Full Thread Black Steel M12 * 1.75 * 60mm Grade 10.9

Metric Hexagonal Bolt Full Thread Black Steel M12 * 1.75 * 60mm Grade 10.9

2.42 $ CAD
2.42 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



Choose these Class 10.9 steel screws for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Dimensions meet ISO (formerly DIN) specifications. Length is measured from under the head. The bolts have a thread of M12 * 1.75 and a length of 60mm.

Black steel screws should be used in dry, noncorrosive environments. Match the thread spacing of mating components. Coarse threads are the industry standard: choose these screws if you don’t know the pitch.

View full details

Specifications
Product Number BMT8-12060-N
Head Type Hex
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M12
Thread Pitch 1.75 mm
Thread Type Metric
Thread Fit Class 6g
Length 60
Threading Fully Threaded
Thread Spacing Coarse

Head
Width 19 mm
Height 7.5 mm
Fastener Strength Grade/Class Class 10.9
Material Black Steel
Tensile Strength 150,000 psi
Hardness Rockwell C32
Specifications Met ISO 4017, DIN 933
RoHS RoHS 3 (2015/863/EU) compliant
