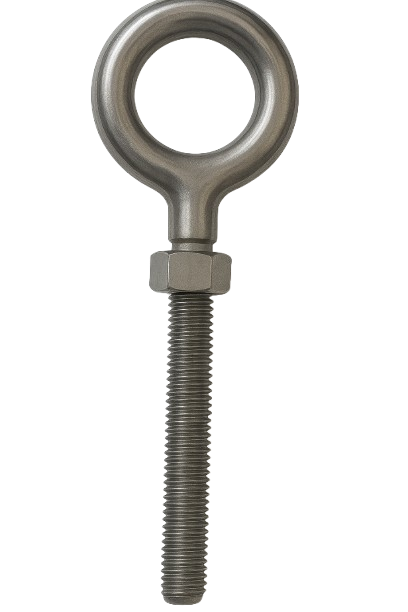

Eye Bolts Without Shoulder Hot Dip Galvanized 3/4-10 * 8"

Eye Bolts Without Shoulder Hot Dip Galvanized 3/4-10 * 8"

20.25 $ CAD
20.25 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



Also known as nut eyebolts, these are designed for through-hole applications.

Galvanized steel eyebolts have a hot-dipped finish for corrosion resistance. The bolts have a thread of 3/4-10 and a length of 8.

Note: Capacities listed are for vertical lifting only.Eyebolts without shoulder are for vertical lifting only.

Warning: Never use to lift people or items over people. The bolt has a maximum load of 5200 lbs.

View full details

Specifications
Product Number BOG-08080
Application For Lifting

Thread
Size 3/4"-10
Length 8"
Shank Length 4 1/2"
Eye Diameter 1 1/2"
Vertical Capacity 5,200 lbs.
Eye Style Closed
Eye Shape Round
Material Galvanized Steel
Threading Partially Threaded
Movement Rigid

Nuts
Number Included 1
Style Hex
Overall Length 7 1/4"
Body Style Without Shoulder
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
