Imperial Hexagonal Bolt Fine And Full Thread 3/8-24 * 1-1/4" Grade 5

Imperial Hexagonal Bolt Fine And Full Thread 3/8-24 * 1-1/4" Grade 5

0.79 $ CAD
0.79 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

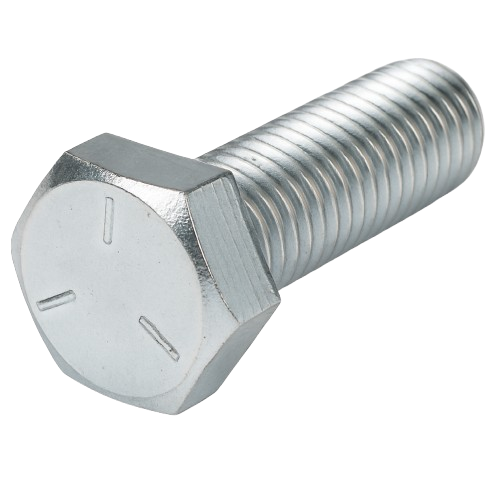

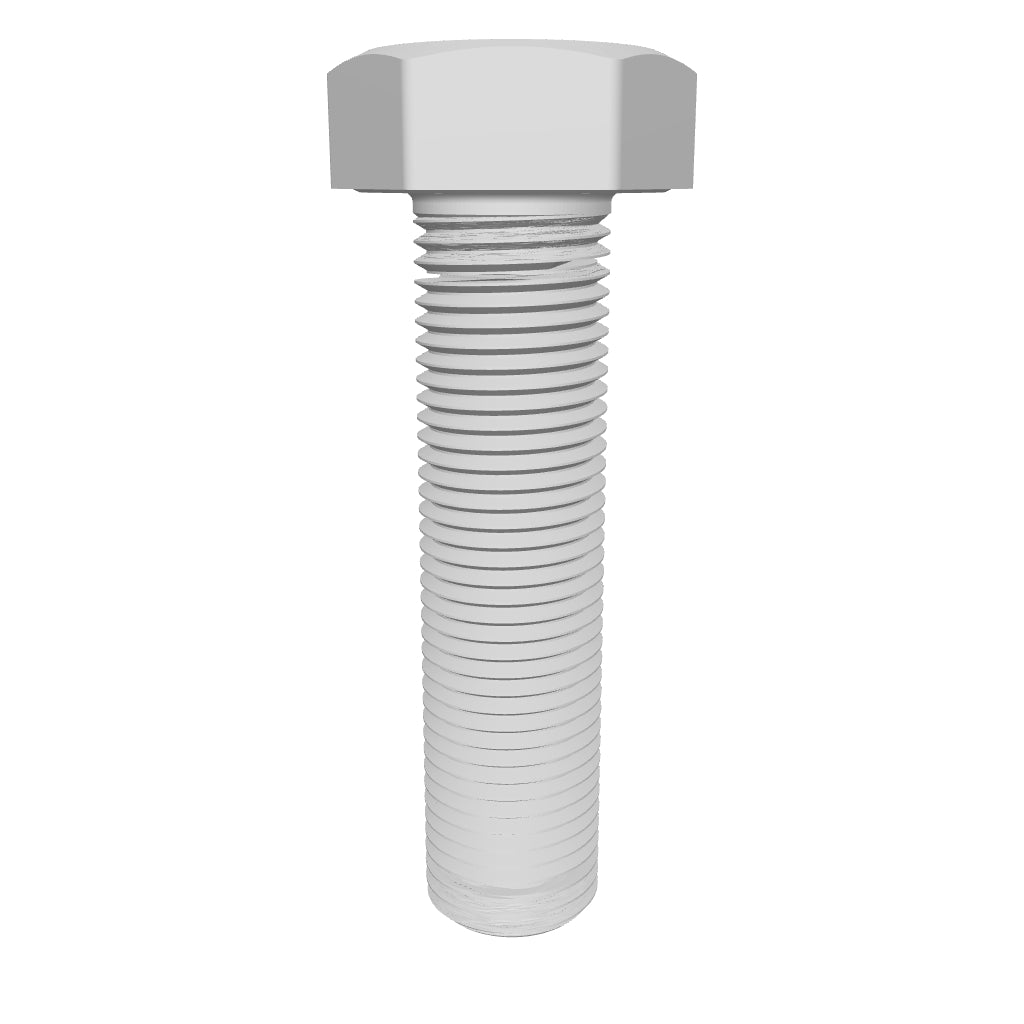

This hexagonal bolt has a length of 1-1/4" with a threading of 3/8-24 [Fully Threaded]. It is made of zinc plated and this provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BTF5-03012
Nominal Diameter 3/8-24
Length 1-1/4"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 3/8-24
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 9/16"
Height 1/4"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429
