Drill Bit High Steel Black and Gold Coated 25/64 * 4-3/8 [ 135°, Split Point ]

Drill Bit High Steel Black and Gold Coated 25/64 * 4-3/8 [ 135°, Split Point ]

19.27 $ CAD
19.27 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



These drill bits have the rigidity and length required for most applications.

Black and gold oxide drill bits produce less friction than uncoated drill bits.

Use cutting oil to increase the durability of the drill bits.

The Split point allows drill without pre-drilling.

Forests have a length of 4-3/8 and a diameter of 25/64.




View full details

Specifications
Product Number FS-02564
Material Black and Gold Coated High-Speed Steel
Nominal Diameter 25/64"
Decimal Diameter Equivalent 0.3906"
Overall Length 4-3/8"
Cutting Flute Lenght 3.1041"

Shank
Type Flat Grip
Size 25/64"
Bit Style Spiral Flute
Point Style Split Point

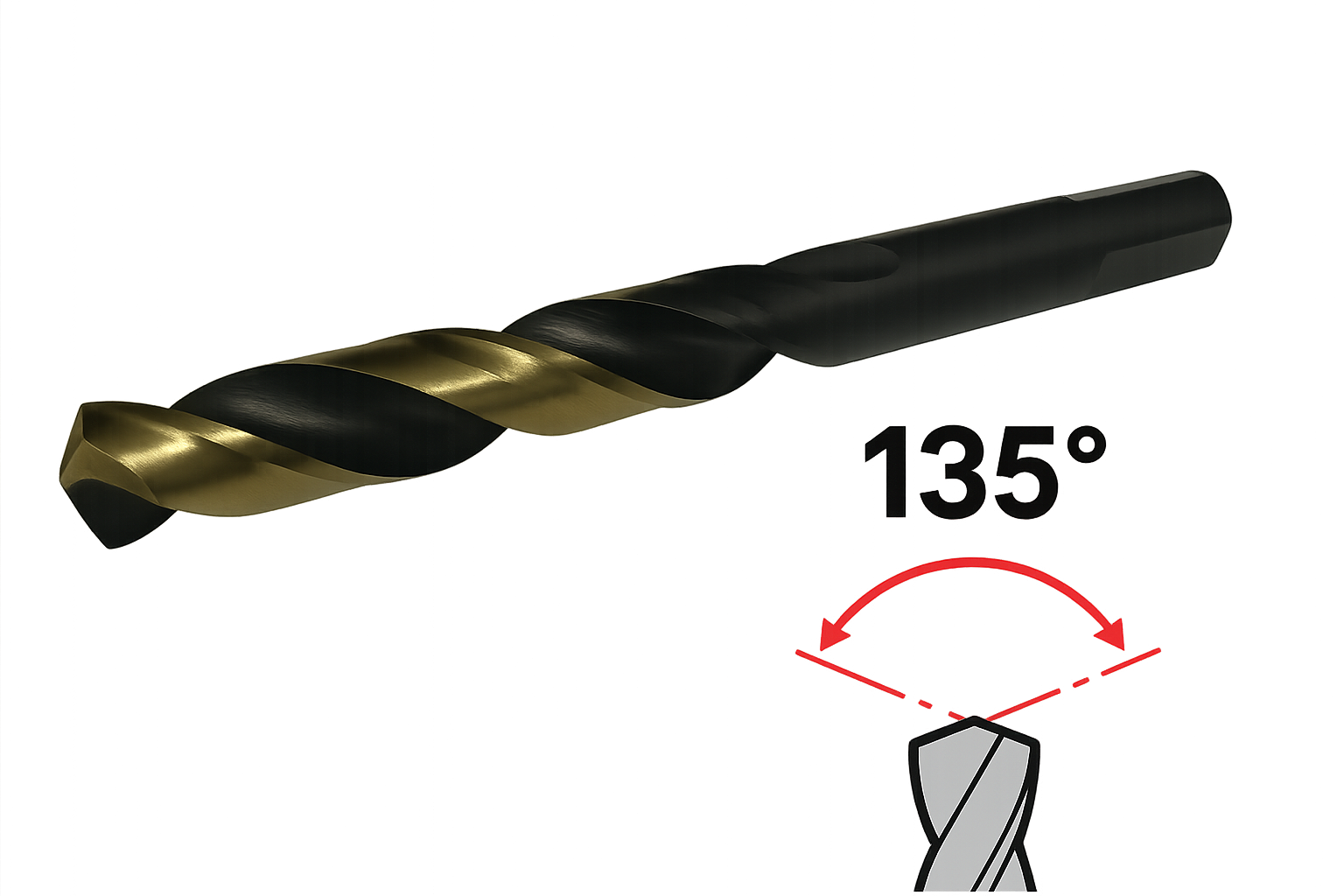

Point Angle 135°
Flute Direction Right Hand
For Use On Steel, Iron, Stainless Steel
Individual/Set Individual
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
