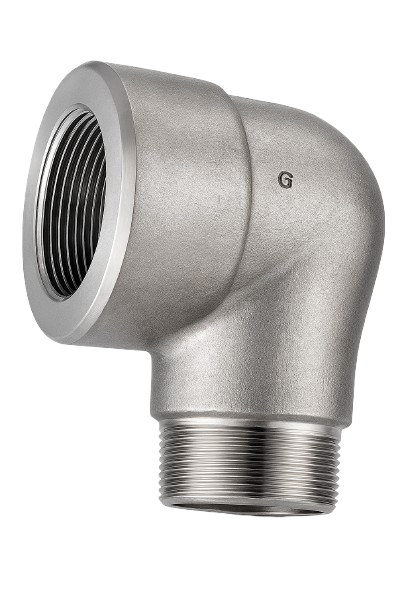

Low Pressure Threaded Elbow Pipe Fitting 316 Stainless Steel 1/8-18 * 90° [Male x Female NPT]

Low Pressure Threaded Elbow Pipe Fitting 316 Stainless Steel 1/8-18 * 90° [Male x Female NPT]

9.16 $ CAD
9.16 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as Class 150 fittings, they are built for use in low-pressure applications. They adhere to high-quality standards for heat treating, material thickness, and marking.

316 stainless steel fittings have excellent corrosion resistance.

Female × male 90° elbow adapters are also known as street elbows.

View full details

Specifications
Product Number MCOUDES3-00590-FNPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape 90° Elbow
Type Adapter
Material 316 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Female × NPT Male
Pipe Size 1/8

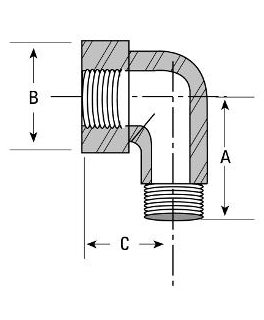

Height (A) 1-1/4
Height (B) 1
Length (C) 7/8
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F

For Pipe
Schedule 40
Material 316 Stainless Steel

For Flange
Class 150
Material 316 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
Features PTFE Thread Sealant
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
