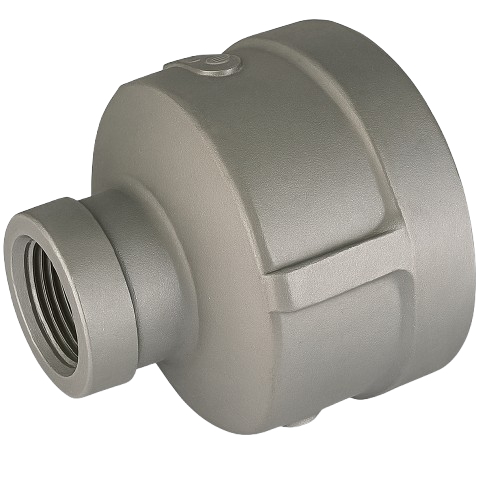

Low Pressure Reducing Straight Connector Threaded 316 Stainless Steel 3/8-18 Reduce to 1/4-18 [Female NPT]

Low Pressure Reducing Straight Connector Threaded 316 Stainless Steel 3/8-18 Reduce to 1/4-18 [Female NPT]

10.16 $ CAD
10.16 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking. 316 stainless steel fittings have very good corrosion resistance.

View full details

Specifications
Product Number RBAGUS3-03002-150NPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape Straight
Type Connector
Material 316 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Thread Type NPT
Gender Female

Pipe Size
From 3/8
Reducing To (Female) 1/4-18"
Length 1 1/8"

For Pipe
Schedule 40
Material 316 Stainless Steel

For Flange
Class 150
Material 316 Stainless Steel
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F
Specifications Met ANSI/MSS SP-114, ASTM A351
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
