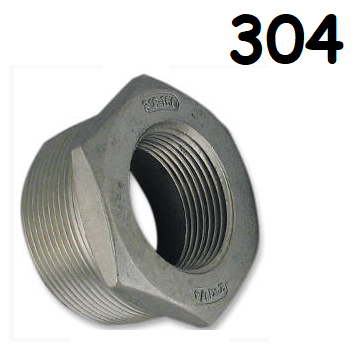

![Low Pressure Bushing Adapter Pipe Fitting Stainless Steel 3/4-14 Male Reduce to 1/4-18 Femelle[NPT]](http://rjm-fasteners.myshopify.com/cdn/shop/products/reducingPipe_SS_3e511592-8c0e-44f8-8035-9158b2683a44.png?v=1593705268&width=1445)

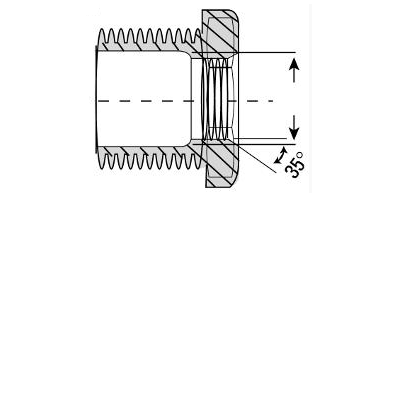

![Low Pressure Bushing Adapter Pipe Fitting Stainless Steel 3/4-14 Male Reduce to 1/4-18 Femelle[NPT]](http://rjm-fasteners.myshopify.com/cdn/shop/products/reducingPipe_dessin_b3806e78-042b-4cba-9bcc-d06b58922e38.png?v=1593705268&width=1445)
Specifications
| Product Number | REDUIS-08002-150NPT |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Shape | Straight |
| Type | Reducing Adapter, Bushing |
| Body Shape | Hex |
| Material | 304 Stainless Steel |
| Class | 150 |
| Fabrication | Heat Treated |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | NPT Male × NPT Female |
Pipe Size |
|
| From (Male) | 3/4" |
| Reducing To (Female) | 1/4-18" |
| Length | 63/64" |
| Hex Width | 1 1/16" |
| Maximum Pressure | 150 psi @ 72° F |
| Maximum Steam Pressure | 150 psi @ 360° F |
For Pipe |
|
| Schedule | 40 |
| Material | 304 Stainless Steel |
For Flange |
|
| Class | 150 |
| Material | 304 Stainless Steel |
| Specifications Met | ANSI/MSS SP-114, ASTM A351 |
| System of Measurement | Inch |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant |
