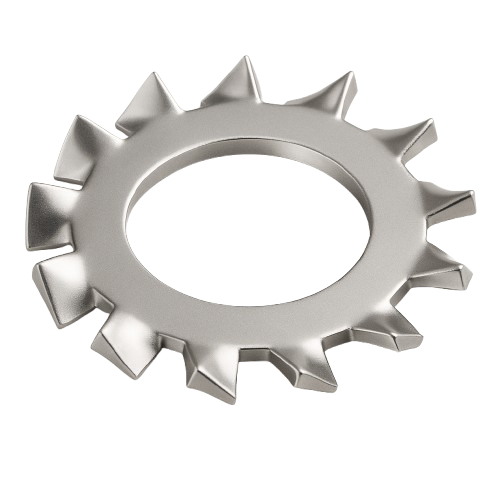

Lock Washer External Tooth Stainless Steel 5/16 * 5/8 OD

Lock Washer External Tooth Stainless Steel 5/16 * 5/8 OD

0.16 $ CAD
0.12 $ CAD 0.16 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Teeth on the outside edge of the washer bite into the screw head and joint for a tight grip. Use with fasteners that have heads large enough to make contact with the teeth, such as pan, button, and binding head screws.

304 stainless steel washers have good chemical resistance and may be mildly magnetic.

View full details

Specifications
Product Number RSDE-02006
Material 304 Stainless Steel
For Screw Size 5/16"
ID 0.320"
Length 5/8"
Thickness 0.028"-0.034"
Washer Type Tooth Lock
Tooth Location External
System of Measurement Inch
Hardness Not Rated
Specifications Met ASME B18.21.1 (Dimensions Only)
RoHS RoHS 3 (2015/863/EU) compliant
