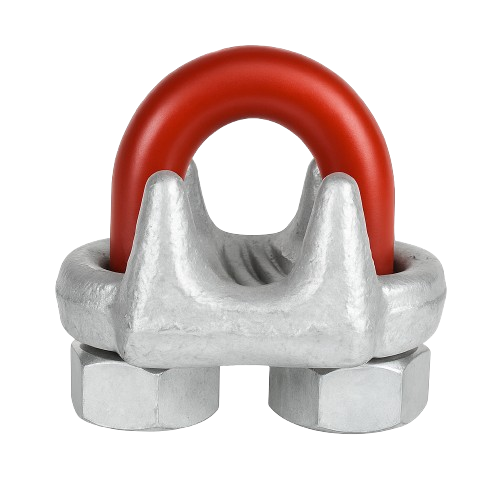

Cast Wire Rope Clamps Hot Dip Galvanized 7/8

Cast Wire Rope Clamps Hot Dip Galvanized 7/8

19.03 $ CAD
19.03 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These must be oriented with the saddle on the long (live) end and U-bolt on the short (dead) end. Their forged fabrication makes these clamps more reliable in critical applications such as tie downs and support lines. They’re also known as wire rope clips. Clamps have a thick coating for corrosion resistance.

Warning: Test all assemblies for requiMay vary strength before use. Do not use with coated rope unless the coating is removed.

View full details

Specifications
Product Number SC-09000
Fitting Type Rope Clamp
Application Not for Lifting
Fabrication Forged
Material Galvanized Steel
For Wire Rope Diameter 7/8"
Number of Clamps RequiMay vary 4
Rope Turnback 19"
For Wire Rope Construction 6 × 19 IWRC6 × 19 Fiber Core6 × 26 IWRC6 × 37 IWRC7 × 19 IWRC7 × 19 Strand Core19 × 7 Strand Core
Attachment Type Loop

Clamp
Width 3 3/16"
Height 3 7/8"
Thickness 2 1/2"
Color May vary
RequiMay vary Installation Tool Torque Wrench
RequiMay vary Torque 225 ft.-lbs.
Capacity 80% of the Rope's Capacity
Specifications Met ASME B30.26, Fed. Spec. FF-C-450
RoHS Not Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
