Hexagonal Lag Screw Hot Dip Galvanized 3/4 * 16"

Hexagonal Lag Screw Hot Dip Galvanized 3/4 * 16"

40.84 $ CAD
40.84 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

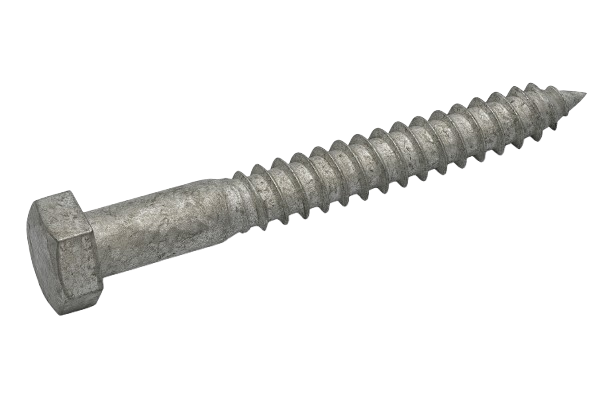

Hot-Dipped Galvanized Steel screws have good chemical resistance and are a good choice for ACQ-treated (arsenic-free) lumber. Also known as lag bolts, they have a hex head for a secure grip with a wrench. They press threads into material for a tight, secure hold. To prevent splitting, drill a pilot hole slightly smaller than the screw. They may be mildly magnetic. Length is measured from under the head. The screw has a length of 16 and a diameter of 3/4.




View full details

Specifications
Product Number TFG-08160
Material Hot-Dipped Galvanized Steel
Screw Size 3/4"
Screw Size Decimal Equivalent 0.750"
Length 16"

Head
Width 1.125"
Height 0.5"
Drive Style External Hex
Approximate Threads per Inch 4.5
Thread Direction Right Hand
Threading Partially Threaded
Minimum Thread Length 2.667"
Tapping Method Thread Forming
Head Type Hex
Hex Head Profile Standard
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Wood
Specifications Met ASME B18.2.1, ASTM A307, SAE J429
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
