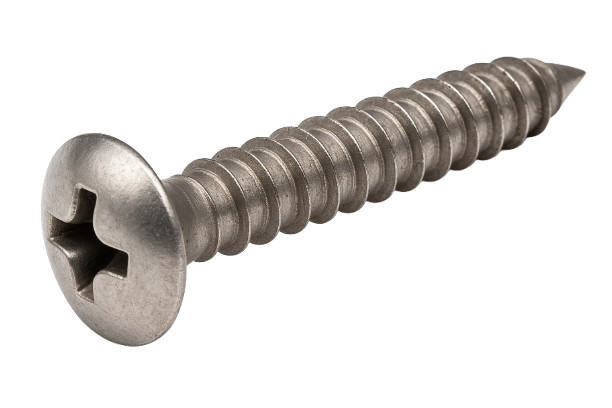

Oval Head Metal Screw Full Thread Stainless Steel #14 * 4" [Philips Drive]

Oval Head Metal Screw Full Thread Stainless Steel #14 * 4" [Philips Drive]

2.64 $ CAD
1.69 $ CAD 2.64 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

304 stainless steel screws have good chemical resistance may be mildly magnetic. A decorative rounded top provides a finished appearance.These screws are beveled under the head for use in countersunk holes. They penetrate 0.025" and thinner sheet metal. Length is measured from the edge of the head. The screw has a length of 4 and a diameter of #14.




View full details

Specifications
Product Number VMESO-14040
Material 304 Stainless Steel
Screw Size No. 14
Screw Size Decimal Equivalent 0.242"
Length 4"
Flat Head Profile Oval

Head
Diameter 0.462"
Height 0.224"
Drive Size No. 3
Drive Style Phillips
Drill Bit Size 5.5 mm
Drill Bit Size Decimal Equivalent 0.2165"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 10
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Flat, Rounded
Rounded Head Profile Low
Rounded Head Style Oval
Oval Top Height 0.136"
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS 3 (2015/863/EU) Compliant
