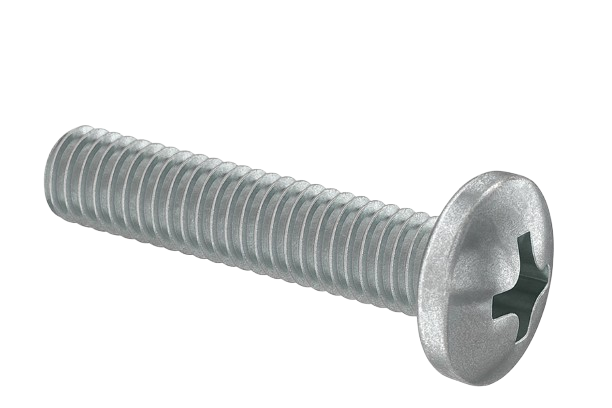

Pan Head Machine Screw Full Thread Zinc 10-24 * 4" [Quadrex Drive]

Pan Head Machine Screw Full Thread Zinc 10-24 * 4" [Quadrex Drive]

0.34 $ CAD
0.34 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These pan head screws are zinc plated for corrosion resistance in wet environments. Length is measured from under the head. The screw has a length of 4" and a thread of 10-24.

View full details

Specifications
Product Number VMP-00840-Q
Thread Size 10-24
Length 4"
Threading Fully Threaded
Head Diameter 0.373"
Head Height 0.133"
Drive Style Quadrex
Drive Size No. 2
Material Zinc-Plated Steel
Hardness Rockwell B70
Tensile Strength 60,000 psi
Screw Size Decimal Equivalent 0.190"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Pan
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS RoHS 3 (2015/863/EU) compliant
