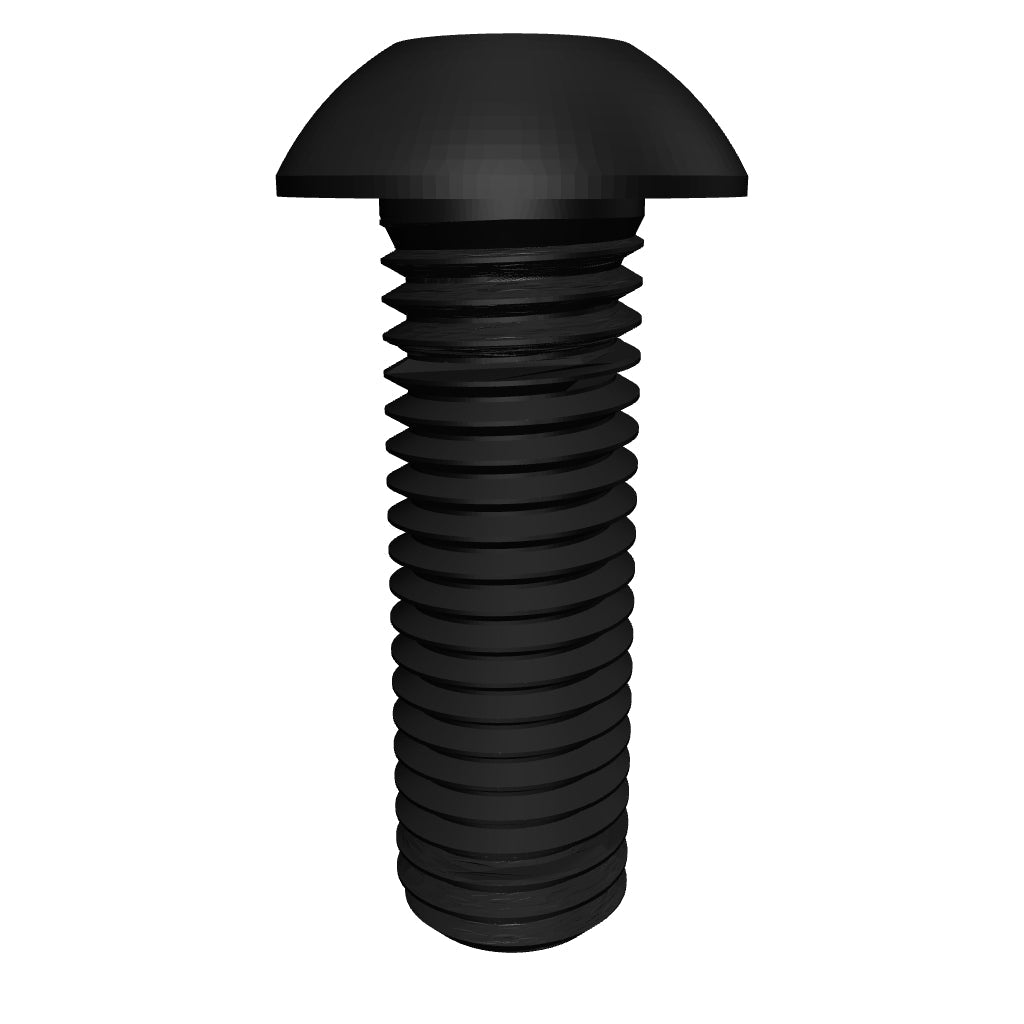

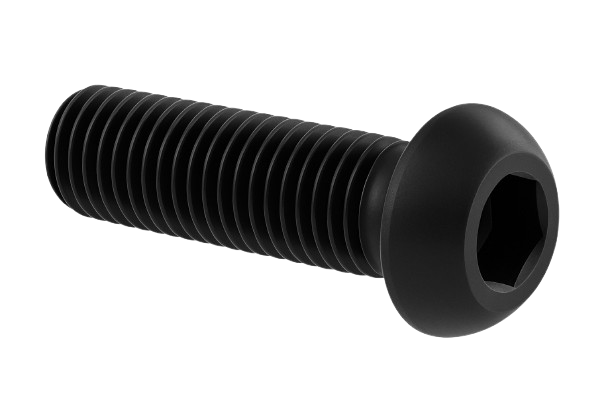

Button Head Cap Screw Fine & Full Thread Black-Oxide Alloy Steel 10-32 * 2-1/2" Grade 8 [Cup Point] [Allen Drive]

Button Head Cap Screw Fine & Full Thread Black-Oxide Alloy Steel 10-32 * 2-1/2" Grade 8 [Cup Point] [Allen Drive]

1.69 $ CAD
1.69 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Made from alloy steel, these screws are nearly twice as strong as stainless steel button head screws. Length is measured from under the head. The screw has a length of 2-1/2" and a thread of 10-32.

Black-oxide alloy steel screws are mildly corrosion resistant in dry environments.

View full details

Specifications
Product Number VPBF-00825
Thread Size 10-32
Length 2-1/2"
Threading Fully Threaded
Head Diameter 0.361"
Head Height 0.101"
Drive Style Hex
Drive Size 1/8"
Material Black-Oxide Alloy Steel
Hardness Rockwell C37
Tensile Strength 120,000 psi
Screw Size Decimal Equivalent 0.190"
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Button
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.3, ASTM F835
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
