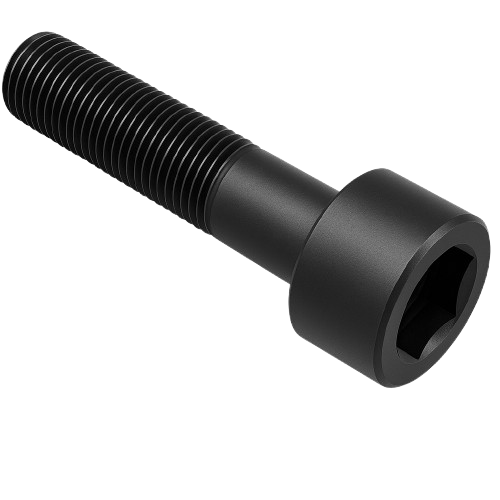

Socket Head Cap Screw Fine Thread Black Steel 7/16-20 * 5-1/2" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Fine Thread Black Steel 7/16-20 * 5-1/2" Grade 8 [Cup Point] [Allen Drive]

31.66 $ CAD
31.66 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

With a tensile strength of 170,000 psi, these Alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head. The screw has a length of 5-1/2 and a thread of 7/16-20.

Alloy steel screws are mildly corrosion resistant in dry environments. Fine and extra-fine threads are closely spaced to prevent loosening from vibration: the finer the thread, the better the resistance. They are not compatible with coarse threads.
View full details

Specifications
Product Number VPCF-04055
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 7/16"-20
Screw Size Decimal Equivalent 0.4375"
Thread Type UNF
Thread Fit Class 3A
Length 5-1/2"
Threading Partially Threaded
Min. Thread Length 1-3/8"
Thread Spacing Fine

Head
Diameter 21/32"
Height 7/16"
Drive Size 3/8"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS Compliant
