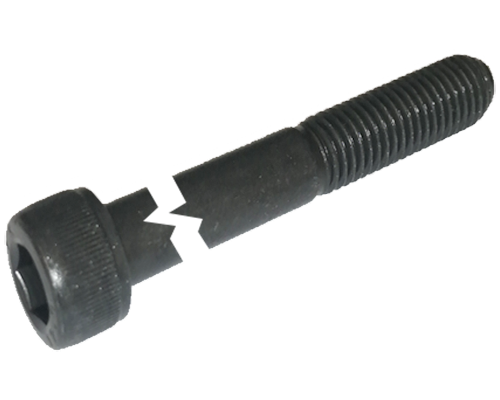

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread M42 * 4.5 * 240MM, Grade 12.9 [Allen Key]

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread M42 * 4.5 * 240MM, Grade 12.9 [Allen Key]

Regular price 378.48 $ CAD
Regular price Sale price 378.48 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

Pickup available at Les Attaches RJM

Usually ready in 24 hours

This socket head cap screw is 240 mm long and has a M42 * 4.5 mm thread [partially threaded]. Made of black oxide alloy steel, it offers slight corrosion resistance in dry conditions.

The cup point and 12.9 grade increase its compressive strength and provide a tensile strength and hardness of 170,000 psi | Rockwell C39. In addition, it has a shear strength of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified to DIN 912 and conform to dimensional standards.



View full details

Specifications

Product Number VPCM-42240
Nominal Diameter M42 * 4.5mm
Length 240mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M42 * 4.5mm
Min. Length 96mm
Fit Class 5g6g

Head Specifications

Type Socket
Profile Standard
Diameter 63.00mm
Height 42.00mm
Drive Style Allen Key
Drive Size 32.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 912
