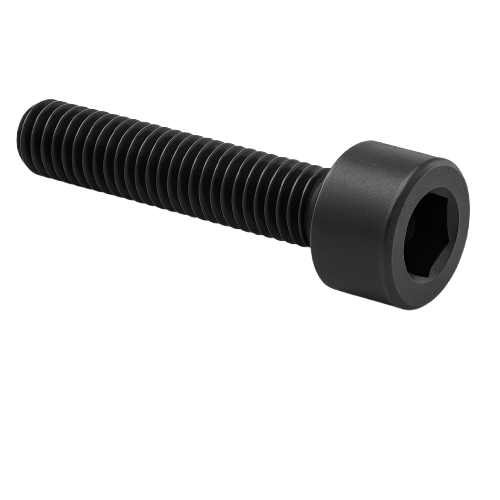

Socket Head Cap Screw Full Thread Black Steel 5-40 * 5/16" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Full Thread Black Steel 5-40 * 5/16" Grade 8 [Cup Point] [Allen Drive]

0.23 $ CAD
0.23 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head. The screw has a length of 5/16" and a thread of 5-40.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality.

View full details

Specifications
Product Number VPCT-00502A
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 5-40
Screw Size Decimal Equivalent 0.125"
Thread Type UNC
Thread Fit Class 3A
Length 5/16"
Threading Fully Threaded
Thread Spacing Coarse

Head
Diameter 0.205"
Height 1/8"
Drive Size 3/32"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
RoHS RoHS 3 (2015/863/EU) Compliant
