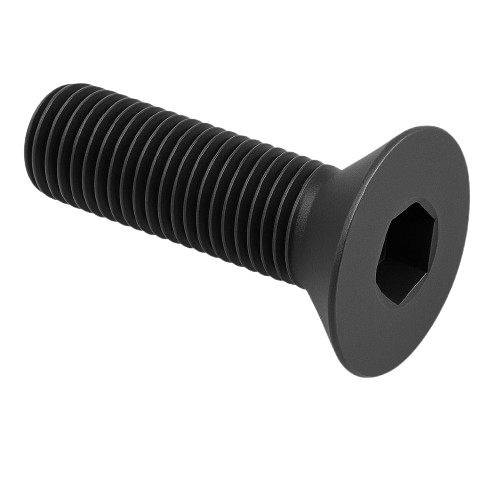

Flat Head Cap Screw Fine & Full Thread Black Steel 10-32 * 7/16" Grade 8 [Cup Point] [Allen Drive]

Flat Head Cap Screw Fine & Full Thread Black Steel 10-32 * 7/16" Grade 8 [Cup Point] [Allen Drive]

0.34 $ CAD
0.34 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Made from alloy steel, these screws are nearly twice as strong as stainless steel flat head screws. They're angled under the head to sit flush within countersunk holes. Length is measured from the top of the head. The screw has a length of 7/16" and a thread of 10-32.

Black-oxide alloy steel screws have mild corrosion resistance in dry environments.

View full details

Specifications
Product Number VPFTF-00803A
Thread Size 10-32
Length 7/16"
Threading Fully Threaded
Flat Head Profile Standard
Head Diameter 0.411"
Head Height 0.127"
Countersink Angle 82°
Drive Style Hex
Drive Size 1/8"
Material Black-Oxide Alloy Steel
Hardness Rockwell C32
Fastener Strength Grade/Class Grade 8
Tensile Strength 120,000 psi
Screw Size Decimal Equivalent 0.190"
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASME B18.3, ASTM F835
RoHS 3 (2015/863/EU) Compliant
