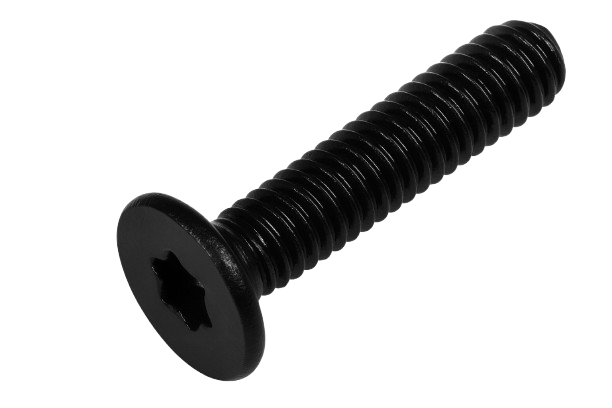

Low-profile flat wide head pressure screw – M3 × 0.5 × 16 mm – Stainless Steel 304 – B.O. finish

Low-profile flat wide head pressure screw – M3 × 0.5 × 16 mm – Stainless Steel 304 – B.O. finish

Regular price 0.77 $ CAD
Regular price Sale price 0.77 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

M3 × 0.5 × 16 mm stainless steel 304 screw is built for assemblies requiring extended thread length while maintaining a low-profile flush mount.
Its wide flat low-profile head allows even pressure distribution, ideal for electronic, mechanical, or metal enclosure assemblies.
The B.O. (as-machined or brushed) finish provides good corrosion resistance and a clean look.

View full details

Specifications

Thread Specifications

Thread Type Metric ISO
Nominal Diameter M3
Thread Pitch 0.5 mm
Thread Length 16 mm (fully threaded)
Thread Direction Right-hand
Tolerance Class 6g
Standard ISO 261 / ISO 965
Material Stainless Steel 304

Head Specifications

Head Type Flat wide low-profile
Head Diameter ~5.5 – 6.0 mm
Head Height ~0.7 – 1.0 mm
Drive Type Slotted
Finish B.O. – As-machined or brushed
Mounting Style Flush mount

Specifications

Thread Specifications

Thread Type Metric ISO
Nominal Diameter M3
Thread Pitch 0.5 mm
Thread Length 16 mm (fully threaded)
Thread Direction Right-hand
Tolerance Class 6g
Standard ISO 261 / ISO 965
Material Stainless Steel 304

Head Specifications

Head Type Flat wide low-profile
Head Diameter ~5.5 – 6.0 mm
Head Height ~0.7 – 1.0 mm
Drive Type Slotted
Finish B.O. – As-machined or brushed
Mounting Style Flush mount
