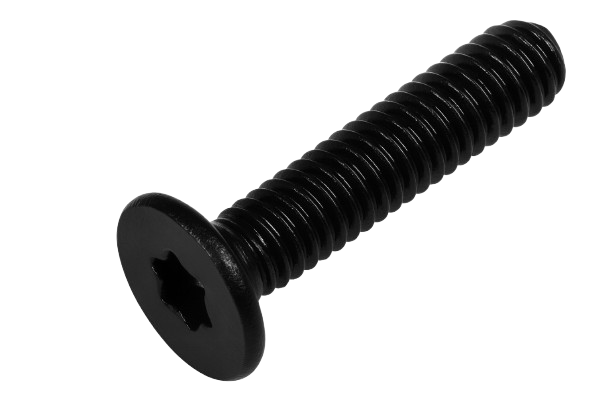

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M4 × 0.7 × 18

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M4 × 0.7 × 18

Regular price 0.81 $ CAD
Regular price Sale price 0.81 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

 metric pressure screw is manufactured from stainless steel 304 with a black oxide finish for added corrosion resistance and a sleek appearance.
Its flat, large, and thin head design provides secure fastening while minimizing protrusion, making it suitable for mechanical assemblies, sheet metal work, and applications requiring a flush fit.
With a metric size of M4 × 0.7 × 18 mm, it ensures durability, precision, and reliability in both industrial and DIY applications.

View full details

Specifications

Thread Specifications

Thread type Metric (ISO)
Thread size M4
Pitch 0.7 mm
Major diameter (external) 4.00 mm
Minor diameter (internal) 3.14 mm
Thread angle 60°
Tolerance class (standard) 6g (external) / 6H (internal)

Head Specifications

Type Flat Head – Large Thin (Low Profile)
Profile Low-profile, flush seating
Diameter 8.0 – 9.0 mm (typical for M4 flat head)
Height 1.8 – 2.0 mm
Drive Style Slotted / Hex socket (depending on version)

Neck Specifications

Form Cylindrical shank
Width 4.0 mm
Height 1.5 – 2.0 mm

Strength Specifications

Strength Grade / Class Stainless Steel A2-70 (equivalent to SS304)
Tensile Strength | Hardness: 700 MPa
Shear Strength 420 MPa
Classification ISO 3506
