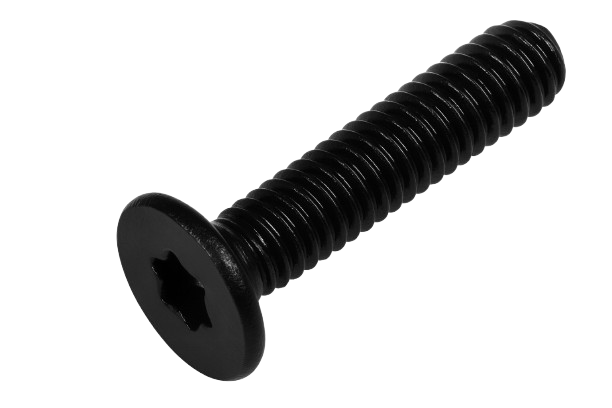

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M5 × 0.8 × 8

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M5 × 0.8 × 8

Regular price 0.73 $ CAD
Regular price Sale price 0.73 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

metric pressure screw is manufactured from stainless steel 304 with a black oxide finish, providing strength, corrosion resistance, and a sleek look.
Its flat, large, and thin head ensures secure fastening with minimal protrusion, making it ideal for sheet metal work, machinery, and flush applications.
With dimensions of M5 × 0.8 × 8 mm, it is suitable for compact assemblies requiring both durability and precision.

View full details

Specifications

Specifications

Nominal Diameter M5
Length 8 mm
Material and/or Plating Stainless Steel 304, Black Oxide
System of Measurement ISO

Thread Specifications

Threading Fully Threaded
Type Metric
Direction Right Hand
Size M5 × 0.8
Shank Length 8 mm
Fit Class 6g

Head Specification

Type Flat | Large Thin
Profile Low Profile | Flush
Diameter 10.0 mm
Height 2.5 mm
Drive Style Slotted / Hex Socket

Neck Specification

Form Cylindrical
Width 5.0 mm
Height 2.0 mm

Strength Specifications

Strength Grade/Class A2-70
Tensile Strength| Hardness 700 MPa
Shear Strength 420 MPa
Classification ISO 3506
